How to Interpret C Rating on LiPo Batteries: A Practical Guide for Users

If you’ve ever stared at a LiPo label that says something like “1300 mAh 75C” and thought… what does that actually mean? You’re not alone. The good news: once you learn one simple formula and a few safety rules, choosing the right battery gets much easier.

This guide will walk you through what C rating really means, how to do the quick math, and how to pick a pack that won’t sag, overheat, or puff—without overspending.

First things first: what “C” actually means

Think of C as a current multiplier tied to the battery’s size (capacity). It doesn’t change how big your “gas tank” is (that’s capacity, in mAh/Ah). Instead, C tells you how wide the highway is—how much current can safely flow at once.

• Capacity basics: 1000 mAh = 1.0 Ah. So 1300 mAh = 1.3 Ah; 5000 mAh = 5.0 Ah.

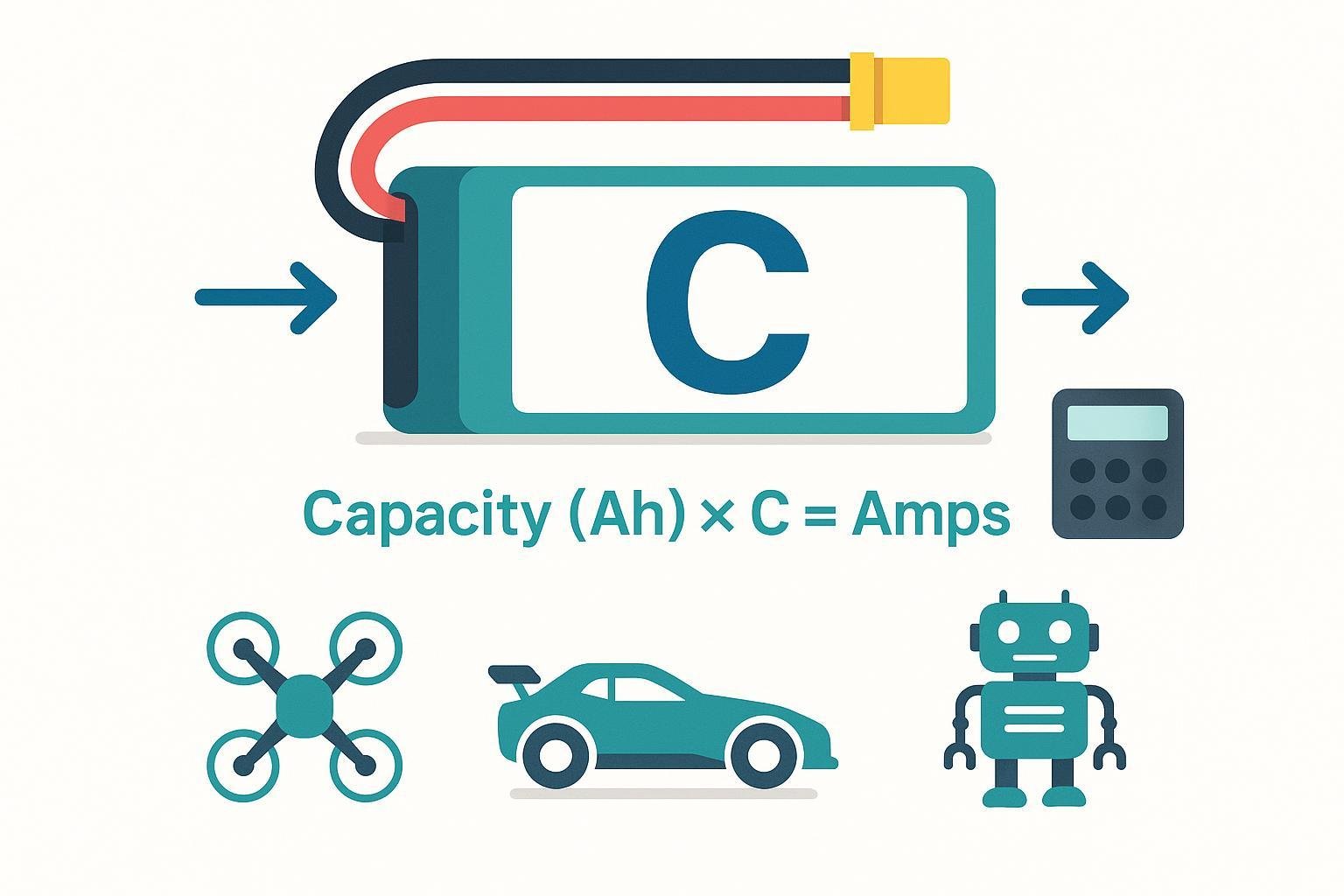

• Core formula you’ll use: Max continuous current (A) ≈ Capacity (Ah) × C rating.
  • Example: 2200 mAh (2.2 Ah) at 25C → 2.2 × 25 ≈ 55 A continuous.

In battery science, this is the standard definition of C-rate: current relative to capacity. That’s why 1C means “current equal to capacity,” and 0.5C means “half capacity.” For a clear explanation, see the 2025-accessible overview in the Battery University BU-402 What is C‑rate page.

Continuous vs burst: plan for the long game

Most LiPo labels list two discharge C ratings:

• Continuous C: What the pack can sustain without overheating under rated conditions.
• Burst C: Short spikes (often just a few seconds) at a higher current.

Here’s the catch: burst isn’t standardized across brands. Some call it 5 seconds, others 10, and measurement methods vary. So don’t size your battery hoping burst will carry you up a long climb or repeated throttle punches. Use continuous C for planning, and keep burst as a bonus safety cushion. Community and vendor explainers consistently flag this lack of standardization, such as the plain-English note in KiwiQuads’ guide to LiPo C ratings and the caution in the FPV Freedom Coalition’s beginner guide (both referenced in 2024–2025).

Discharge C vs charge C: don’t mix them up

Discharge C is about how much current your device can pull. Charge C is how fast your charger should push energy back in.

• Default safe charger setting: 1C for most LiPo packs.
  • Example: 5000 mAh at 1C = 5 A charge current.
• Only charge above 1C if the pack’s datasheet explicitly allows it (e.g., 2C). Faster charging adds stress and can shorten life.

For the underlying rationale and the standard CC/CV charging profile, see Battery University’s BU‑409 on charging lithium‑ion (2025). Some RC-focused vendors also note when higher charge rates are permissible, but always defer to your specific pack’s official spec.

Step-by-step: size your battery correctly

We’ll use a simple workflow you can repeat for any project.

1. Estimate your device’s current draw

• Sources: motor/prop charts, ESC datasheets, community build logs, or better yet, telemetry and wattmeter readings.

2. Convert that into a needed continuous current capability

• Rule of thumb: Give yourself 20–50% headroom above your typical continuous draw to cover bursts, temperature effects, aging, and optimistic labels.

3. Calculate the C rating you need

• Formula: C_needed ≈ I_required / Capacity(Ah).

4. Sanity checks

• Temperature: Keep pack surface below roughly 55–60°C (131–140°F) during/after use for safety and longevity. This practical threshold shows up across hobby safety resources, like DroneBotWorkshop’s LiPo safety notes (2024).
• Connectors and wires: Make sure your connectors and wiring can handle the current. For common RC connectors, see guidance like Holybro’s connector and wire ratings page.

Walkthrough example 1: FPV drone

• Your quad peaks at 60–80 A on throttle punches; cruises 20–40 A.
• You choose a 1300 mAh pack (1.3 Ah). A 75C label suggests 1.3 × 75 ≈ 97.5 A continuous on paper.
• With 20–50% margin, this looks adequate. Validate by checking post‑flight temperature and in‑OSD voltage sag. If packs come down hot (>~60°C) or sag hard, step up in C, capacity, brand quality, or improve airflow.

Walkthrough example 2: RC car

• System averages ~40 A, peaks ~120 A for a few seconds.
• A 5000 mAh pack (5.0 Ah) at 30C gives 5.0 × 30 = 150 A continuous on paper.
• This typically works. If you see thermal cutoffs or puffing, try a reputable 40–50C pack or increase capacity to lower the C demand.

Walkthrough example 3: Small robot

• Continuous load: 18 A.
• Pack: 3000 mAh (3.0 Ah). C_needed ≈ 18/3.0 = 6C.
• A quality 15–25C pack will run cooler and age better than a borderline 6–10C choice, especially for continuous duty.

For an approachable community perspective on selection and why higher C isn’t always better, see the OscarLiang LiPo battery beginner guide (updated through 2025).

Temperature, internal resistance, and voltage sag (why this matters)

• Heat rises with current squared (I²R). As internal resistance (IR) increases—due to cold, age, or lower-quality cells—voltage sags more under load, and the pack runs hotter.
• Keep an eye on temps: above ~55–60°C surface is a warning sign to reduce load or choose a higher-capacity/higher‑C pack. Practical hobby resources echo this guidance, for example the safety reminders in DroneBotWorkshop’s LiPo article (2024).
• Cold weather raises IR and causes more sag; warm (not hot) packs perform better. For a general overview of temperature effects on LiPo performance, see Melasta’s explainer on temperature vs performance (2023).
• Never leave packs in a hot car. Elevated ambient heat dramatically increases risk, as highlighted in the 2024 DroneLife note on hot cars and LiPo risk.

If you want the foundational battery-science context (C-rate definition and charging/temperature cautions), the Battery University collection (BU-402, BU-409) offers concise explanations referenced by engineers and hobbyists alike.

Common mistakes (and how to avoid them)

• Relying on burst C for long climbs or sustained acceleration

  • Fix: Size by continuous current with margin; treat burst as a short bonus.

• Assuming higher C always means longer runtime

  • Fix: Runtime comes from capacity (mAh). Higher C can reduce voltage sag but doesn’t add energy.

• Charging faster than 1C without datasheet approval

  • Fix: Default to 1C, balance charge multi‑cell packs, and follow the pack’s specified max charge current. See Battery University BU‑409 (2025) for the why.

• Ignoring connectors/wires

  • Fix: Ensure connectors (e.g., XT60 vs XT90) and wire gauge can handle your expected current; reference manufacturer or reputable docs such as Holybro’s connector ratings.

• Running packs hot or storing them full/empty

  • Fix: Aim to keep surface under ~60°C; store around 3.7–3.85 V/cell in a cool, dry, fire‑resistant place. Battery life benefits from partial‑charge storage according to the Battery University BU‑702 storage guidance (2025).

• Trusting labels blindly

  • Fix: Buy from reputable brands, and verify with telemetry, datalogs, or a wattmeter. If performance degrades (more heat/sag), the pack’s effective C has likely dropped with age.

Safety essentials you shouldn’t skip

• Always use a LiPo‑compatible balance charger; set the correct chemistry and cell count; never exceed 4.2 V/cell.
• Do not charge unattended; charge on a nonflammable surface or in a LiPo‑safe bag.
• Inspect packs regularly for swelling, damage, or unusual heat; retire damaged/puffed packs responsibly.
• Keep charging within the recommended temperature range (typically 0–45°C for charging and up to ~60°C for discharge). For general lithium‑ion charging temperature limits and safety rationale, see Battery University BU‑409 (2025).

Quick reference: formulas, rules of thumb, and a mini checklist

• Formulas

  • Max continuous current (A) ≈ Capacity (Ah) × C rating.
  • Needed C ≈ I_required / Capacity(Ah).

• Rules of thumb

  • Plan for your typical draw to be ≤60–70% of the labeled continuous capability for longevity.
  • Add 20–50% headroom above expected continuous draw (environment, aging, and marketing optimism).
  • Keep pack surface under ~55–60°C during/after use; if hotter, reduce load or step up capacity/C.
  • Default charge rate: 1C, unless your pack’s datasheet explicitly allows higher.
  • Store at ~3.7–3.85 V per cell in a cool, dry, fire‑resistant container.

• Mini checklist (use every time)

  • What’s my expected continuous and peak current?
  • Which capacity am I choosing? Convert to Ah.
  • C_needed = I_required / Capacity(Ah). Do I have 20–50% headroom?
  • Are my connectors/wires rated for this current?
  • After a test run, is the pack under ~60°C and showing acceptable sag?
  • Charging at 1C in balance mode with correct cell count?

FAQs

• Is higher C always better?

  • Not necessarily. Higher C can be heavier and pricier. If your device doesn’t draw high current, you’ll see little benefit.

• Does higher C increase runtime?

  • No. Runtime depends mostly on capacity (mAh). Higher C may reduce sag under high load but doesn’t add energy.

• My battery says 100C—do I need that?

  • Probably not. Choose based on your actual current needs with margin. Independent tests and brand reputation matter; see the practical advice in the OscarLiang LiPo guide.

• Can I charge at the same C as I discharge?

  • No. Charge C limits are separate and typically much lower. 1C is a safe default unless your pack’s datasheet states otherwise; see Battery University BU‑409.

• Does S count affect the C math?

  • No. S is the number of cells in series (voltage). Current capability is from capacity × C. Make sure your ESC and motor can handle the pack voltage and current.

• Why does my pack puff?

  • Overcurrent/overheating, over‑discharge, physical damage, or aging. Stop using puffed packs and follow safe disposal guidance. General safety cautions are summarized by DroneBotWorkshop’s LiPo safety article (2024).

Mini glossary

• C rating: A multiplier that, when multiplied by capacity (Ah), gives current (A).
• Capacity (mAh/Ah): How much energy the battery can store; affects runtime.
• Continuous vs burst: Sustained current vs short spikes. Use continuous for planning.
• Charge C‑rate: How fast you can safely charge (often 1C unless stated otherwise).
• Internal resistance (IR): Internal “friction” that causes heat and voltage sag under load.
• Voltage sag: Temporary drop in voltage when current demand increases.
• ESC: Electronic Speed Controller; manages power to motors and has current/thermal limits.
• S count (e.g., 4S): Cells in series; more S = higher voltage. Doesn’t change C math.

If you remember just three things: C is a current multiplier, plan around continuous current with headroom, and default to 1C charging unless your pack’s datasheet says otherwise. Do that, and you’ll avoid most beginner traps while getting safe, reliable performance.
