Why Precise Voltage Verification Matters

Lithium polymer (LiPo) batteries power everything from drones to RC cars, and verifying they’re fully charged—without exceeding safe limits—is the key to long battery life, top performance, and avoiding dangerous incidents. Overcharging, even by a small margin, risks fire, swelling, or irreversible damage. Below, you’ll learn the safe, accurate way to check if your LiPo has reached full charge by measuring its voltage—step by step.

Quick Reference: Standard LiPo Full Charge Voltages

S-count (Cells in Series)	Fully Charged Voltage
1S	4.20 V
2S	8.40 V
3S	12.60 V
4S	16.80 V
6S	25.20 V

Per cell: 4.20 V ±0.01 V (never exceed!) (Grepow LiPo Guide)
For labeled HV (High Voltage) LiPo cells, refer to manufacturer data; never assume higher safe voltages.

Essential Tools:

Digital multimeter (DC volts, 6V+ range)
Balance charger or LiPo voltage checker
(Optional) Smart charger with cell display, dedicated balance checker

Safety Setup Checklist:

Battery is undamaged (no swelling/leaks)
Work surface is fireproof, uncluttered
Safety glasses/fire-resistant bag recommended

How to Verify a LiPo Battery Has Reached Full Charge

1. Identify Cell Count and Battery Type

Confirm battery label (e.g., “3S” = three cells in series = full charge 12.6V total).
Check charger/cell checker compatibility.

2. Prepare Measurement Tools

Power off charger before measuring.
Get your digital multimeter, charger with cell readout, or LiPo checker.

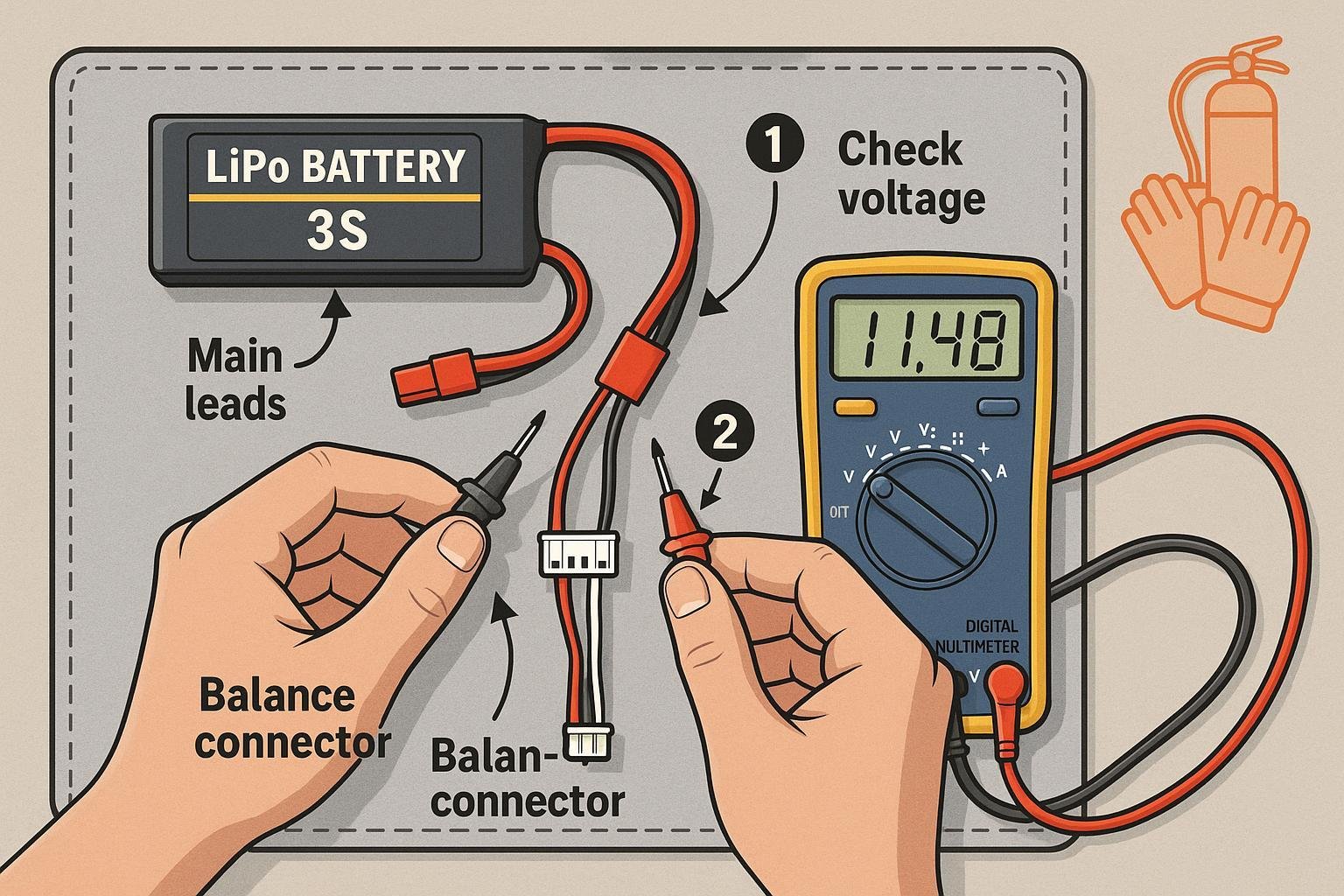

3. Measure Pack (Total) Voltage

Connect the multimeter probes to the main battery leads—red to positive, black to negative.
Read the displayed voltage: Should equal S-count × 4.20V (±0.05V tolerance).
- Example: 3S pack → 12.60V total when fully charged.
Important: Pack voltage alone can mask cell imbalance. Always check individual cells for multi-cell packs!

4. Measure Individual Cell Voltage (Critical for Packs >1S)

Use the balance connector:
- With a LiPo checker: Plug in balance lead, read each cell’s voltage.
- With a multimeter: Probe adjacent pins in the connector (refer to charger/manual for pin layout).
- With a smart charger: Select cell voltage display menu after charging completes.
Readings should show:
- Every cell: 4.20V ±0.01V (best: all within 0.05V of each other)
- No cell over 4.21V! No cell under 4.18V at full charge.

Decision Point: Are All Cells Properly Charged & Balanced?

If YES: Battery is optimally charged and safe to use.
If NO: (e.g., imbalance >0.1V, any cell over 4.21V, or below 4.18V)
- Do not use the battery!
- Go to Troubleshooting section below.

5. Confirm Stable Readings

Allow battery to rest off charger for 1–5 minutes before final voltage check. Charging voltage can be misleading (surface charge).
Repeat measurement. Values should remain stable.

6. Record & Store Safely

Log readings and battery condition.
Store fully charged battery away from flammable items. For long-term, discharge to ~3.8V/cell (storage voltage).

Troubleshooting & Common Mistakes

Most Frequent Errors

Mistaking pack voltage for per-cell voltage: Pack may look fully charged, but an individual cell may lag or overcharge.
Not using balance lead/checker: Misses weak or damaged cell in multi-cell packs.
Overvoltage reading (>4.21V): Stop, disconnect charger immediately, allow battery to cool, do not use; consult manufacturer.
Cell mismatch (>0.1V spread): Indicates cell imbalance, damage, or aging; run balance charging cycle or retire pack if persistent.
Connection errors: Bad plug, dirty or oxidized contacts, open/broken wires can cause false readings; clean and check all connectors.
Charger error codes:
- “Voltage Error”, “BALANCE ERR”, “CELL MISMATCH”, “V.OUT RANGE” (HobbyKing Error Code Guide)

Quick Solutions

Run a balance charge cycle if imbalance detected (most chargers offer this mode).
Calibrate tool: If readings seem off, check and calibrate your multimeter against a known voltage source.
Retire damaged cells: If any cell routinely underperforms or cannot reach 4.18V, safely dispose following e-waste guidelines.

Prevention Tips

Balance charge all multi-cell packs, especially after long storage or first use.
Monthly cleaning of contacts prevents most measurement errors.
Never leave charging batteries unattended—always monitor!

Safety Reminders & Further Resources

Never exceed 4.20V per cell—fire risk rises rapidly above this threshold (Grepow).
Always verify cell voltages after charging and before use—not just total pack voltage.
Retire packs with persistent cell imbalance for safety.
Always store batteries at storage voltage (approx. 3.8V/cell) when not in immediate use for longer lifespan (Oscar Liang’s LiPo Guide).
Use fireproof charging bags or containers whenever possible.

Downloadable Reference & Checklist

Printable LiPo Charging & Voltage Check Quick Reference PDF (currently unavailable; please check the manufacturer’s website or trusted forums for up-to-date resources)

Reliable Tutorials & Industry Sources

In summary:

By following these steps, using a reliable voltage checker, and referencing the guide above, you can confidently verify when your LiPo battery is optimally charged—boosting safety and performance every time.

Accurate measurement, balanced cells, and never exceeding voltage thresholds are the pillars of safe, hassle-free LiPo use!
